GUARD™

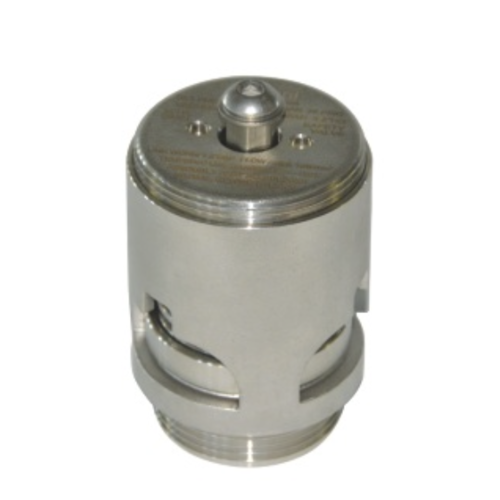

1,5" BSP Safety Relief Valve, pressure 1,93 Bar, vacuum 0,21
€171,41
€141,66 Ex. BTW/VAT
1.5" BSP Safety Relief Valve 1.5" BSP Connection.
Suitable for a vacuum range of between 0.02-0.81 bar
(0.5 -24 HG) and a pressure range of between 0.07-4.34
Bar(1-63 PSI). Complete with manual vent button.
Option : Flame proof gauze.
Suitable for a vacuum range of between 0.02-0.81 bar
(0.5 -24 HG) and a pressure range of between 0.07-4.34
Bar(1-63 PSI). Complete with manual vent button.
Option : Flame proof gauze.
Out of Stock
Article code: APB24001-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

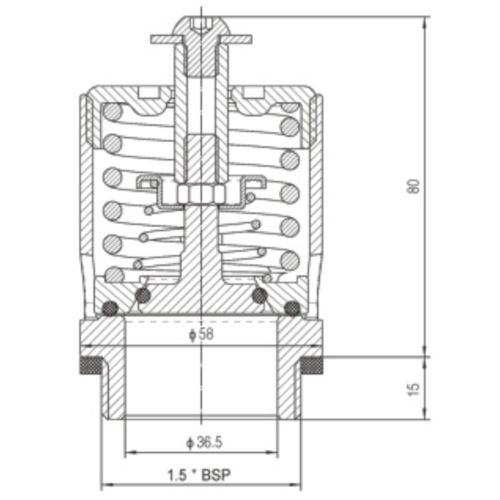

Part No. APB24001-0 0
Nominal diameter DN40
Connection 1.5" BSP
Pressure setting 1.93 bar/28 PSIG
Vacuum setting 0.21 bar/6.2 HG
Contact parts 316L
Seal encapsulated O-Ring
Design temperature -55 200
Weight 0.74 kg
Encapsulated O-Ring
