GUARD™

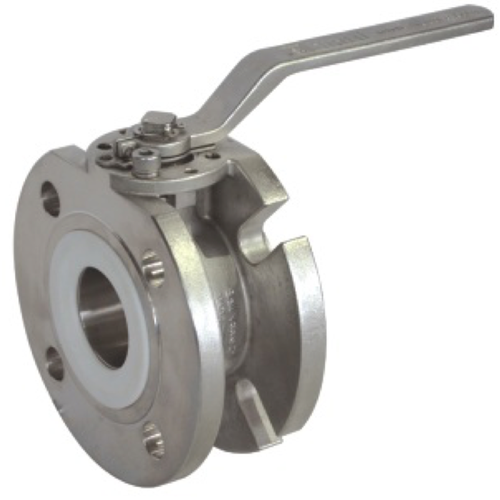

2" Ball Valve, MAWP 7 bar, 316 Stainless Steel, Full Bore
€394,15
€325,74 Ex. BTW/VAT
2" Full Bore Ball Valve Left open or Right open ,
with lead seal hole. The ball valve is used as top
discharge manually or with actuators. With floating
bottom ball seal and dual-seal, the seal of valves is
adjusted by tightening the screw kits.
with lead seal hole. The ball valve is used as top
discharge manually or with actuators. With floating
bottom ball seal and dual-seal, the seal of valves is
adjusted by tightening the screw kits.
In stock
Article code: QLF75001-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
2" Full Bore Ball Valve Left open or Right open ,
with lead seal hole. The ball valve is used as top
discharge manually or with actuators. With floating
bottom ball seal and dual-seal, the seal of valves is
adjusted by tightening the screw kits.
Part No. QLF75001-00

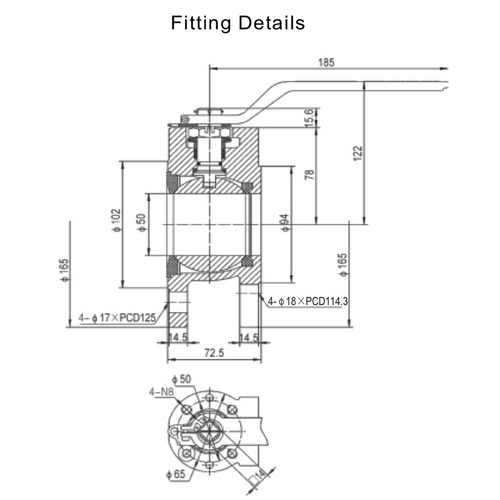

Connection
Container Flange 4x17 PCD125
Outlet 4x18 groove hole PCD114.3
Nominal Diameter 50mm
MAWP 7 Bar
Contact Parts in SS 316
Seal PTFE Viton
Design Temperature -40 190 degrees celsius
Weight 5.9 kgs
