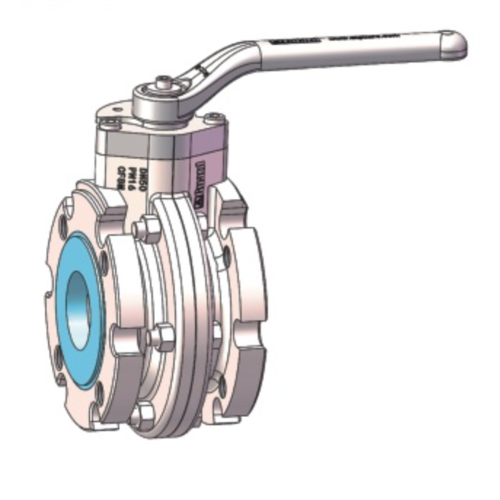

GUARD™ 2'' PFA Lined Ball Valve
GUARD™ 2'' PFA Lined Ball Valve
GUARD™ 2'' PFA Lined Ball Valve
GUARD™

2'' PFA Lined Ball Valve

€0,00
€0,00 Ex. BTW/VAT
Connection:

Container Flange 4x5/8-11UNCxPCD120.6
Outlet 4x5/8-11UNCxPCD120.6

Nominal Diameter: 50mm

MAWP: 16Bar
Design Temperature: - 40ºC ~ + 200ºC

Contact Parts: 316/PFA

Seal: PTFE
In stock
Article code: QAFA5001-00
Product description

2" PFA Lined Ball Valve - left open or right open with lead seal hole. Adopt one-piece ball stem design, with double sealing effect, series ball valve can be manually or add actuator, the lining layer adopts soluble PTFE high-purity raw materials, with excellent corrosion resistance, high (low) temperature resistance, non-adhesive and electrical insulation, can resist the corrosion of various strong acids, strong alkalis, strong oxidants. It has the advantages of quick and convenient opening and closing, and small opening and closing force; the shorter connection size can be suitable for various occasions.



Connection:

Container Flange 4x5/8-11UNCxPCD120.6

Outlet 4x5/8-11UNCxPCD120.6

Nominal Diameter 50mm

MAWP 16Bar
Design Temperature - 40ºC ~ + 200ºC

Contact Parts 316/PFA

Seal PTFE
