GUARD™
2,5" BSP Safety Relief Valve, pressure 4.4 bar, vacuum 0.21 bar
€396,40
€327,60 Ex. BTW/VAT

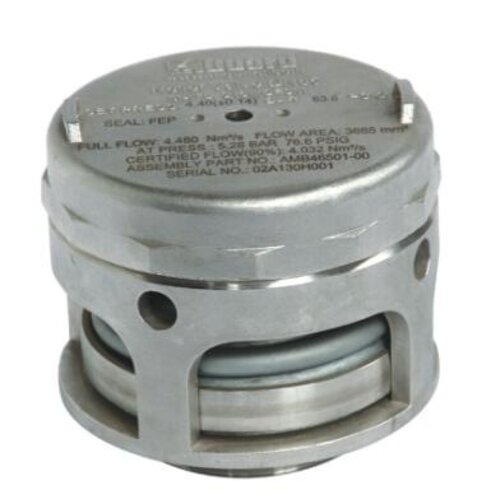

2,5" BSP Safety Relief Valve - Pressure 4.4 bar, Vacuum 0.21 bar
316 Stainless Steel, 010/16312
2.5" BSP Safety Relief Valve
connection 65mm Nominal bore. Suitable for a
vacuum range of between 0-0.81 Bar (0-24 HG) and
a pressure range of betwe
316 Stainless Steel, 010/16312
2.5" BSP Safety Relief Valve
connection 65mm Nominal bore. Suitable for a
vacuum range of between 0-0.81 Bar (0-24 HG) and
a pressure range of betwe
In stock
Article code: APB46501-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
2,5" BSP Safety Relief Valve - Pressure 4.4bar, Vac. 0.21bar
316 Stainless Steel, 010/16312
2.5" BSP Safety Relief Valve 2.5" BSP
connection 65mm Nominal bore. Suitable for a
vacuum range of between 0-0.81 Bar (0-24 HG) and
a pressure range of between 0.21-4.55 Bar(3-66 PSI).
Option Flame Proof Gauze.
Part No. APB46501-00
Nominal Diameter DN65
Connection 2.5" BSP
Pressure Setting 4.4 Bar/63.8PSIG
Vacuum Setting 0.21 Bar/6.2 HG
Contact Parts in SS 316L
Seal Encapsulated O-Ring
Design Temperature -55 200 Weight 3.0kg
