GUARD™

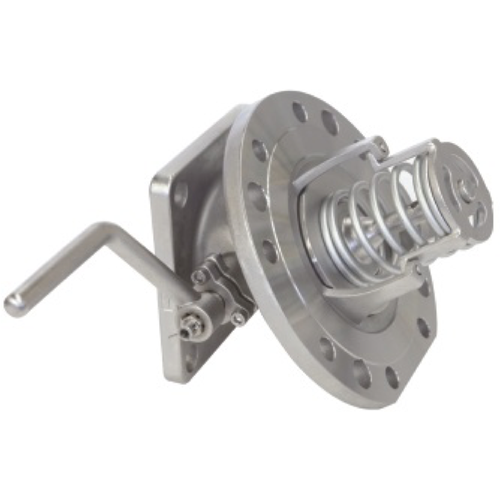

3" 30° Foot Valve, Inlet 8×φ14×PCD178, 4×φ 18×PCD178,
€497,20
€410,91 Ex. BTW/VAT
3" 30 degrees Foot Valve Inlet flange drilled 4x
18mm and 8x 14mm holes equi-spaced on a
PCD 178mm, Outlet flange drilled 4x 18mm
holes equi-spaced on a PCD 160mm.
Option-Shutting-off device for emergency and fusible link.
Part No. JS368002-00
C
18mm and 8x 14mm holes equi-spaced on a
PCD 178mm, Outlet flange drilled 4x 18mm
holes equi-spaced on a PCD 160mm.
Option-Shutting-off device for emergency and fusible link.
Part No. JS368002-00
C
Out of Stock
Article code: JS368002-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
3 30 Footvalve Inlet flange drilled 4x
18mm and 8x 14mm holes equi-spaced on a
PCD 178mm, Outlet flange drilled 4x 18mm
holes equi-spaced on a PCD 160mm.
Option-Shutting-off device for emergency
and fusible link.
Part No. JS368002-00
Connection Flange drilled
4 18 PCD178 and 8 14 PCD178
Outlet 4 18 PCD160
Nominal Diameter 80mm
Nominal Pressure 6Bar
Contact Parts 316
Fitted with FEP/Silicon Encapsulated O-Ring
Design Temperature -40 ~ 200 C
