Delivery times
The delivery time depends on the destination and availability of the product. In most cases we deliver within 1 to 2 working days within the Benelux. Outside the Benelux on average 4 working days. If you want an indication of the delivery time please contact us at [email protected]

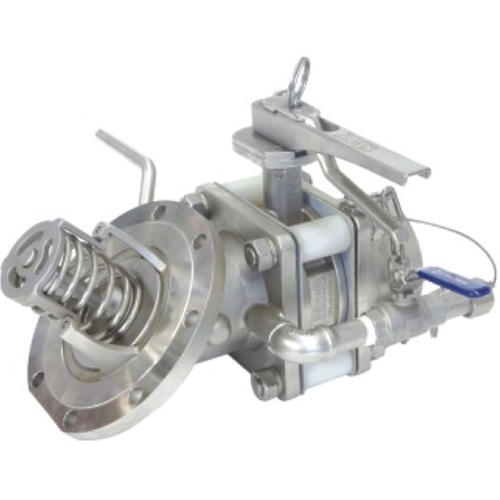

GUARD™
3" 45° Bottom discharge with sample valve, 3" 45° Foot Valve
€1.100,00
€909,09 Ex. BTW/VAT
3" 45 degrees Bottom Discharge with Sample Valve
3" 45 degrees Foot Valve + 3" Clamped Butterfly Valve + 3"
DC Outlet + 1/2 Two Pieces Ball Valve and cap.
Option-Shutting-off device for emergency and fusible link.
Flange drilled 8x14 PCD178 + 3" Clam
3" 45 degrees Foot Valve + 3" Clamped Butterfly Valve + 3"
DC Outlet + 1/2 Two Pieces Ball Valve and cap.
Option-Shutting-off device for emergency and fusible link.
Flange drilled 8x14 PCD178 + 3" Clam
Out of Stock
Article code: HDJ48005-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Part No. HDJ48005-00

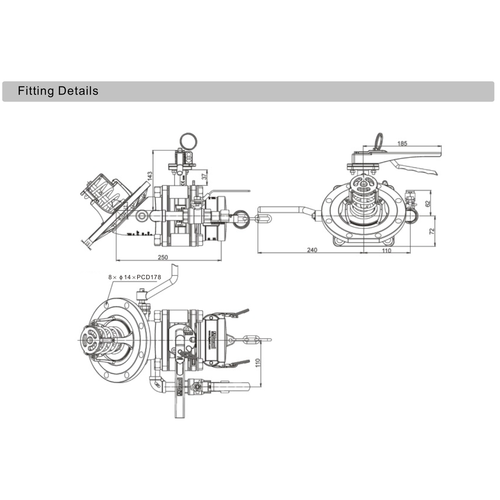

Flange drilled 8x14 PCD178
Outlet DC Camlock
Nominal Pressure 6 bar
Contact Parts in SS 316
Fitted with FEP/Silicon Encapsulated O-Ring
Design Temperature -40 - +200 celsius
+ 3" Clamped Butterfly Valve + 3" DC Camlock+ 1/2" two pieces ball valve with dust cap.
