GUARD™
4'' 90º Bottom Discharge (Coating)
€0,00
€0,00 Ex. BTW/VAT
Flange drilled 8 x 16 PCD250
Nominal Diameter: 100mm
Nominal Pressure: 6Bar
Contact Parts: Coating
The Valve Plate Seal is VITON
Design Temperature:-20
Weight: 25kg
Nominal Diameter: 100mm
Nominal Pressure: 6Bar
Contact Parts: Coating
The Valve Plate Seal is VITON
Design Temperature:-20
Weight: 25kg
In stock
Article code: JZ964C10-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

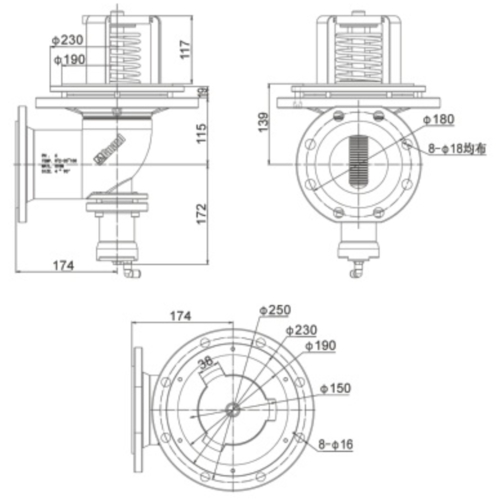

4" 90 Bottom Discharge(Coating) - The inlet flange is 8 16 on the flange surface of PCD 250mm. The outlet flange is 8 18 on the flange surface of PCD 180mm. The products can also be equipped with emergency cutting and high temperature melting device uses fluorine rubber.
Outlet 8 x 18 PCD180
Flange drilled 8 x 16 PCD250
Nominal Diameter: 100mm
Nominal Pressure: 6Bar
Contact Parts: Coating
The Valve Plate Seal is VITON
Design Temperature:-20
Weight: 25kg
