GUARD™

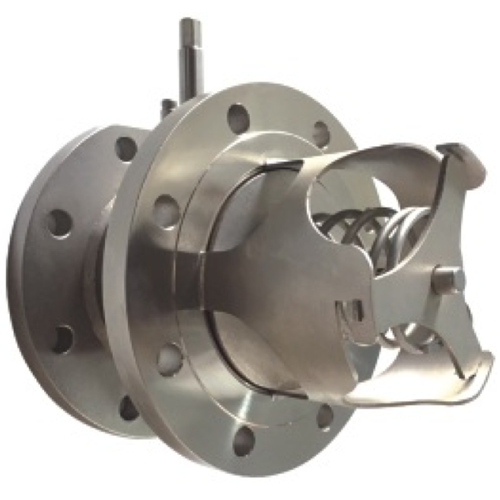

5" 180 degrees Foot Valve in SS316
€998,20
€824,96 Ex. BTW/VAT
Connection
8x18 PCD210
8x18 PCD200
Nominal Diameter 125 mm
Nominal Pressure 4 bar
Contact parts in SS 316
Seal PTFE Viton
Design Temperature -40 ~200 celsius
Nom.Pressure 4Bar, Flange drilled 8 x diam 18 x PCD 210, Outlet 8 x diam 18 PCD 200
8x18 PCD210
8x18 PCD200
Nominal Diameter 125 mm
Nominal Pressure 4 bar
Contact parts in SS 316
Seal PTFE Viton
Design Temperature -40 ~200 celsius
Nom.Pressure 4Bar, Flange drilled 8 x diam 18 x PCD 210, Outlet 8 x diam 18 PCD 200
Out of Stock
Article code: JS165C01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

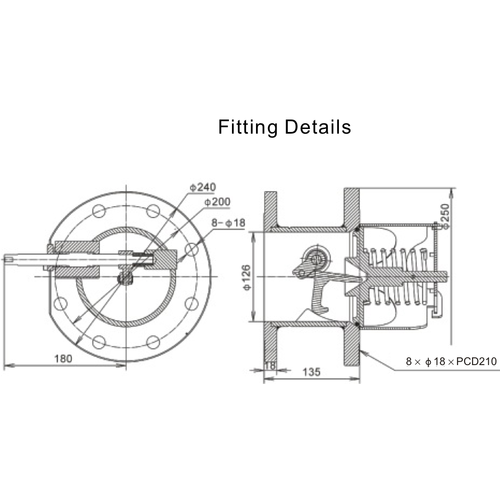

5" 180 Foot Valve inlet flange drilled 8x18 holes
equi-spaced on a 210mm PCD; outlet flange drilled 8x18
holes equi-spaced on a 200mm PCD. Contact parts in 316
stainless steel with FEP/Silicon seal.
Nom. pressure 4 bar, flange drilled 8xdiam 18 x PCD 210, Outlet 8xdiam 18 PCD 200
