GUARD™

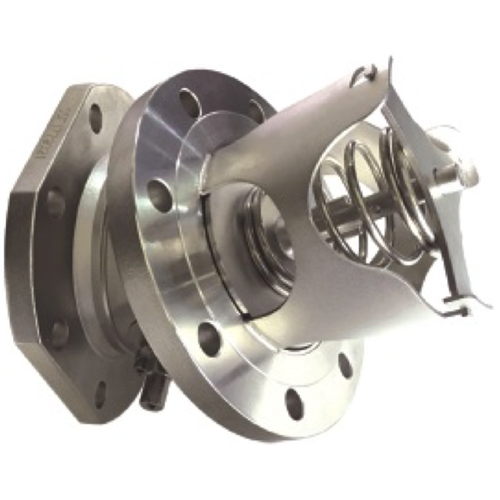

5" 30 degrees Foot Valve SS 316
€998,20
€824,96 Ex. BTW/VAT

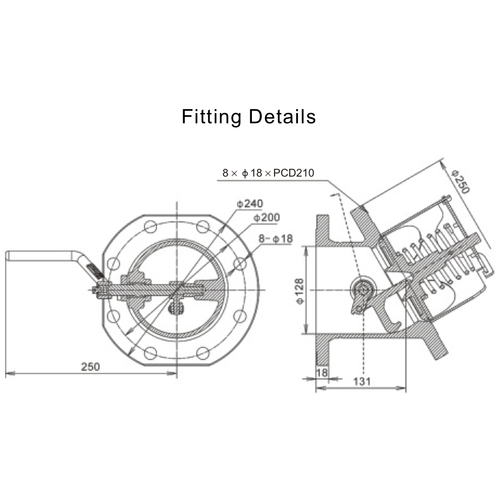

5" 30 Foot Valve inlet flange drilled 8x18 holes
equi-spaced on a 210mm PCD; outlet flange drilled 8
18 holes equi-spaced on a 200mm PCD. Contact parts in
316 stainless steel with FEP/Silicon seal.
Part No. JS365C01-00
8x18 PCD210
8x18 PCD200
N
equi-spaced on a 210mm PCD; outlet flange drilled 8
18 holes equi-spaced on a 200mm PCD. Contact parts in
316 stainless steel with FEP/Silicon seal.
Part No. JS365C01-00
8x18 PCD210
8x18 PCD200
N
Out of Stock
Article code: JS365C01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
5" 30 Foot Valve inlet flange drilled 8x18 holes
equi-spaced on a 210mm PCD; outlet flange drilled 8x
18 holes equi-spaced on a 200mm PCD. Contact parts in
316 stainless steel with FEP/Silicon seal.
Part No. JS365C01-00
Connection
8x18 PCD210
8x18 PCD200
Nominal diameter 125 mm
Nominal pressure 4 bar
Contact parts in SS 316
Seal PTFE Viton
Design Temperature -40 ~200
