GUARD™

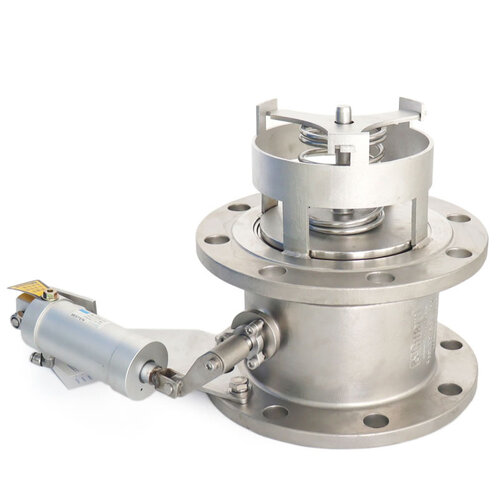

6''180 degree pneumatic High Lift Foot Valve
€1.805,57
€1.492,21 Ex. BTW/VAT

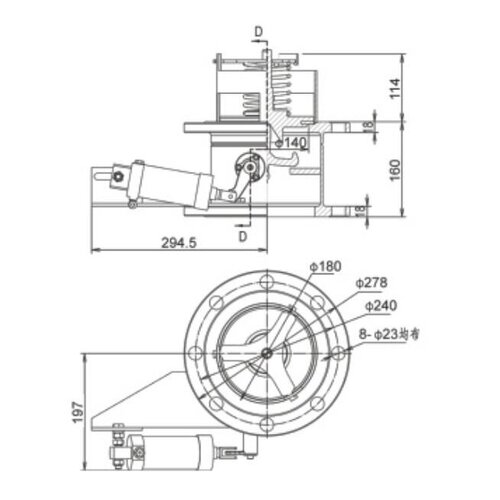

6”180° Bottom Discharge – The inlet flange is 8x ф 23 on the flange surface of PCD 240mm. The outlet flange is 8x ф 23 on the flange surface of PCD 240mm. The main seal adopts Viton material sealing ring.
In stock
Article code: JZ166C01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

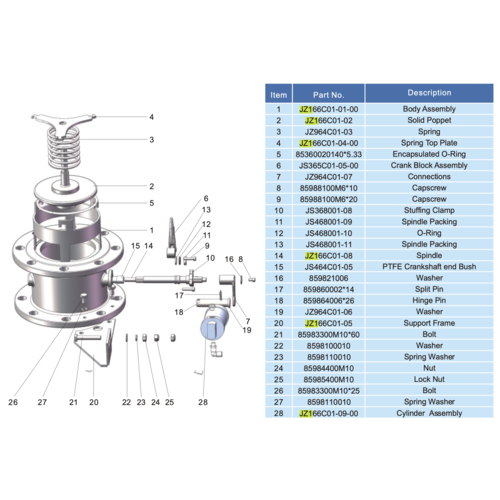

Part No.: JZ1 66C01-00
Connection:
8x ф23 x PCD240
8x ф 23 x PCD240
Nominal Diameter: 140mm
Nominal Pressure: PN6
Design Temperature: – 20°C~ + 150°C
Contact Parts: CF8
Seal: PTFE、VITON
