GUARD™

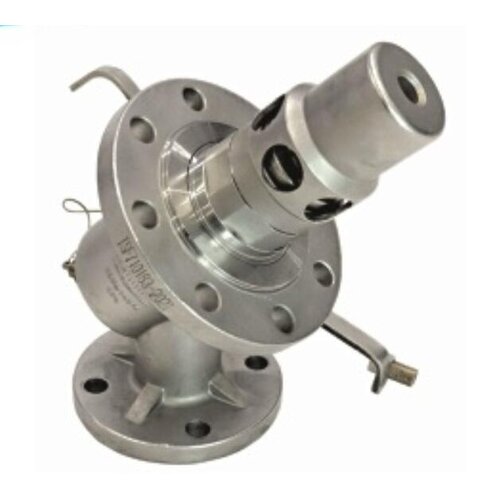

DN50 Emergency Cut-off Valve (liquid)
€0,00
€0,00 Ex. BTW/VAT
Connection:

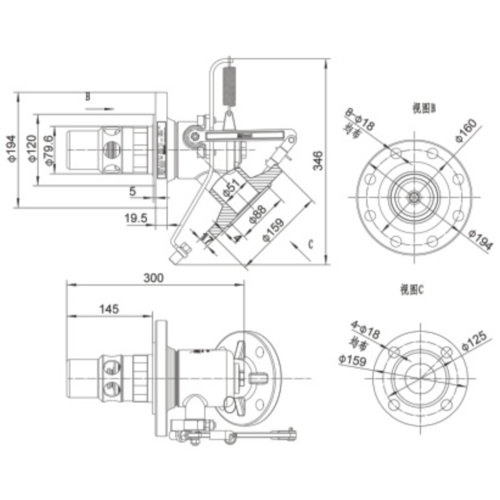

Inlet flange: 4 x ø 18 x PCD125
Outlet flange: 4 x 14 PCD85
Nominal diameter: 50mm
Nominal pressure: 25Bar
Design temperature: -40ºC ~ +120ºC
Nominal displacement: 18 m³/h
Contact parts: CF8
Sealing: PTFE
Inlet flange: 4 x ø 18 x PCD125
Outlet flange: 4 x 14 PCD85
Nominal diameter: 50mm
Nominal pressure: 25Bar
Design temperature: -40ºC ~ +120ºC
Nominal displacement: 18 m³/h
Contact parts: CF8
Sealing: PTFE
In stock
Article code: QGD42C5001-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Cryogenic Needle Valve(Liquid) – liquid valve. Inlet flange 8x ф18mm are all distributed on the ф160 circles. Outlet flange 4x ф18mm are all distributed on the ф 125 circles.The valve is provided with overflow cut-off function.
