GUARD™

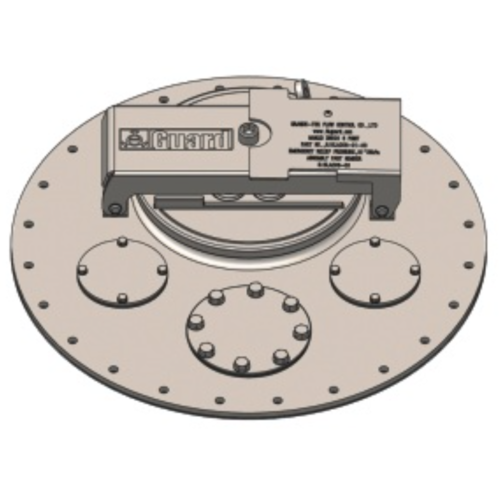

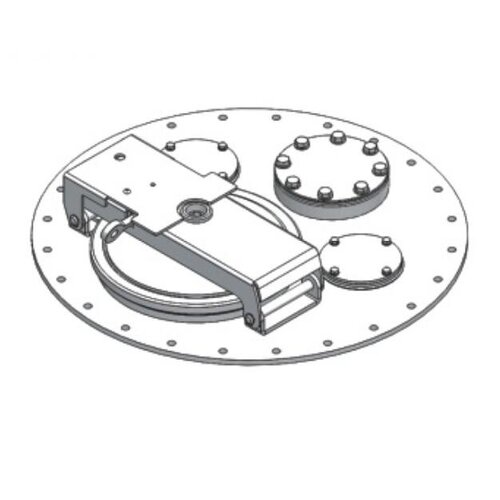

DN500 European Standard Manlid Cover
€0,00
€0,00 Ex. BTW/VAT
Nominal Diameter: 500mm
Nominal Pressure: 65kPa
Emergency Pressure Relief: 21~35kPa
Points 24
Design Temperature - 20ºC ~ + 50ºC
Weight 26kg
Nominal Pressure: 65kPa
Emergency Pressure Relief: 21~35kPa
Points 24
Design Temperature - 20ºC ~ + 50ºC
Weight 26kg
In stock
Article code: R15LAC06-01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

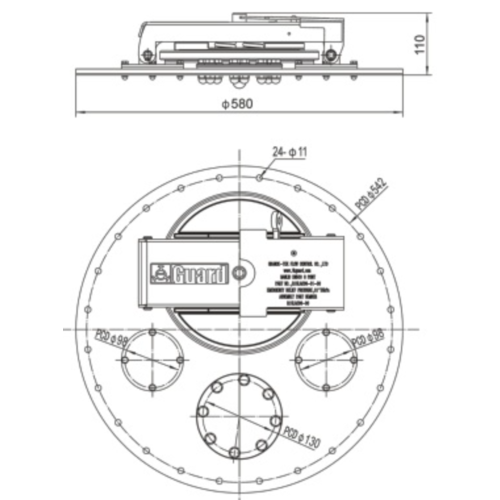

DN500 European Standard Manlid Cover, design requirements in line with QC/T 1065-2017. The flange cover and reckring are secured by 24 M10 bolts. The emergency discharge pressure is 21~35kPa. Oil and gas recovery valve, anti-overflow probe rod device, oil gauge rod device, built-in breathing valve (pressure 6~12kPa, vacuum pressure 2~4kPa) can be installed. Option - Connection size: outer diameter 560, circular hole distance 530; (R15LAC07-01-00) Optional - Reserved accessories flange mounting holes can be customized according to customer requirements.
