GUARD™

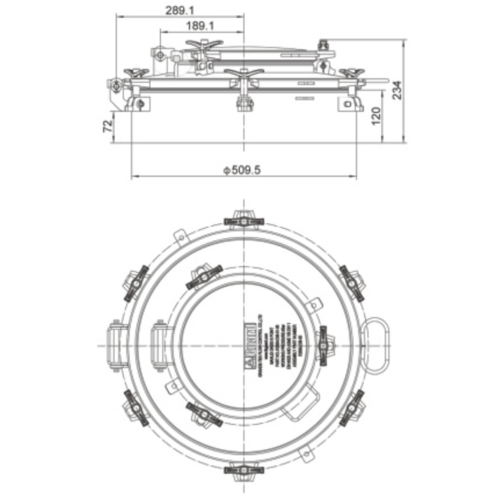

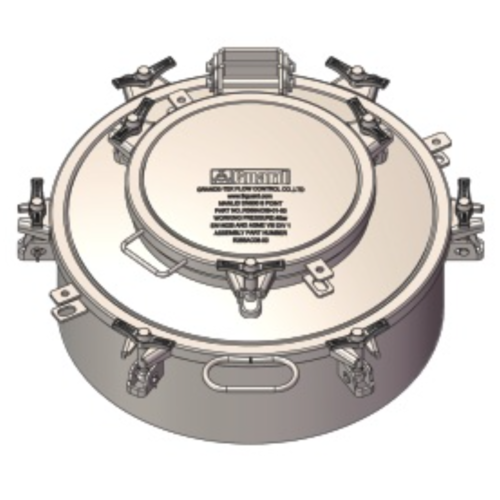

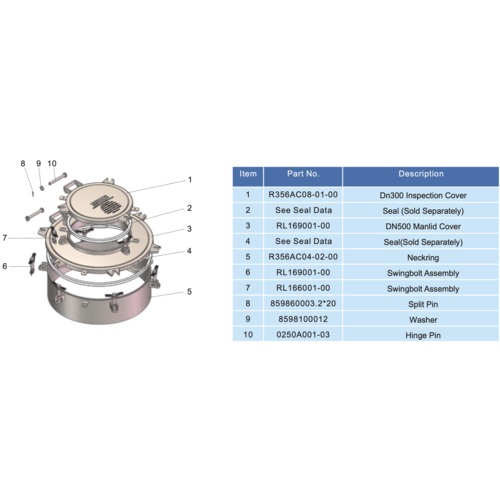

DN500 With stands 4BAr Pressure Manlid Assembly -With DN300 Inspection
€0,00
€0,00 Ex. BTW/VAT
Nominal Diameter 500mm
Text Pressure 4Bar(58PSI)
Points 6
Design Temperature - 40ºC ~ + 200ºC
Cover Weight 20kg
Neckring Weight 8kg
Text Pressure 4Bar(58PSI)
Points 6
Design Temperature - 40ºC ~ + 200ºC
Cover Weight 20kg
Neckring Weight 8kg
In stock
Article code: R356AC08-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
DN500 With stands 4Bar Pressure Manlid Assembly -With DN300 Inspection, when using PTFE coated EPDM seal ring, bolt locking torque up to 90N.m, pressure resistant 4Bar (25 ). manlid cover with inspection cover, save tank opening. It is suitable for the tank car whose detection pressure is 4Bar.
Standard M16 stainless steel swing bolt assembly. The gasket is provided separately.
