GUARD™

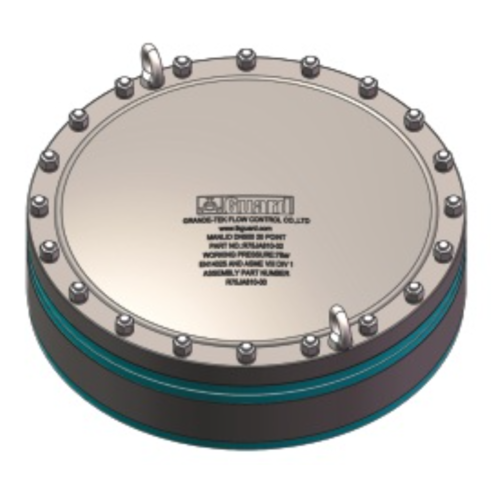

(DN500mm) Rotomolding Flange Manlid Assembly
€0,00
€0,00 Ex. BTW/VAT
Suitable for lined tanks .
Option - Can be customised different radian, the height of the neckring according to the customer's tank size; Option - Blind flange cover optional installation of safety valve reserved hole and other valve installation flange;
Option - Can be customised different radian, the height of the neckring according to the customer's tank size; Option - Blind flange cover optional installation of safety valve reserved hole and other valve installation flange;
In stock
Article code: R75JA810-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Suitable for lined tanks .
Option - Can be customised different radian, the height of the neckring according to the customer's tank size; Option - Blind flange cover optional installation of safety valve reserved hole and other valve installation flange;

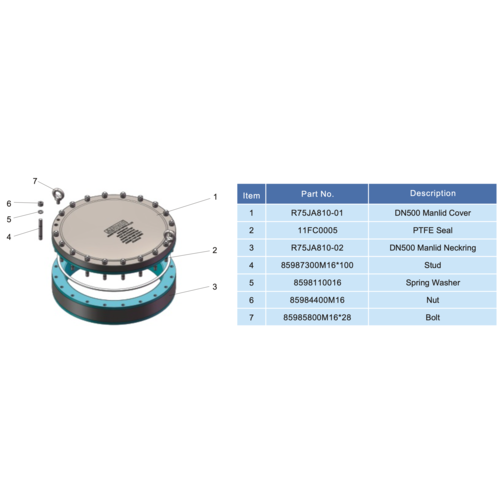

Fitting fastener package; Manlid seal sold separately.
Part No. R75JA810-00

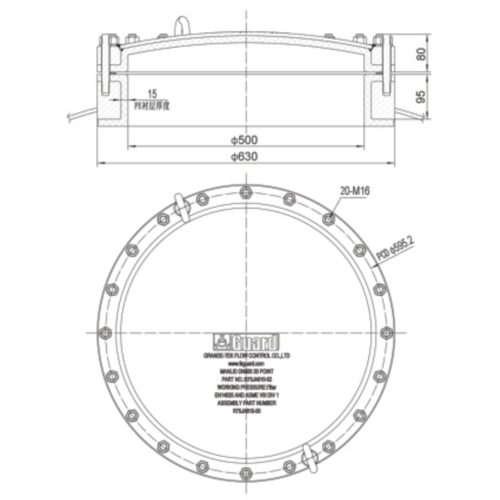

Nominal Diameter 500mm
Design Pressure 7Bar(101PSI) Test Pressure 10Bar(145PSI) Points 20
Design Temperature - 40ºC ~ + 200ºC Cover Weight 42.5kg
Neckring Weight 57kg
