T75 Cryogenic Gas Tank Valves & Parts

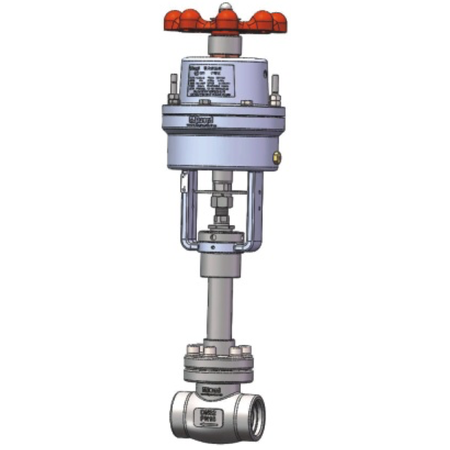

Cryogenic Emergency cut-off Valve
An emergency shut-off device for cryogenic equipment such as cryogenic storage tanks or tank trucks. When the outside temperature is higher than 70± 5℃, the emergency shut-off valve is automatically closed, the medium is cut off,and the tank or tank truck is protected.Suitable for LNG,LC2H4. Welding connection.The flow direction of the medium flows from the high side to the low side of the valve body.

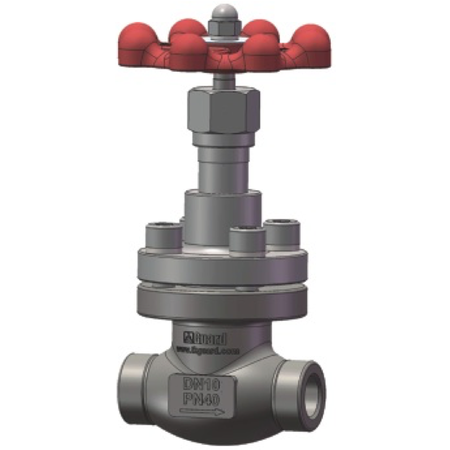

Cryogenic Globe Valve
Suitable for LNG or other cryogenic medium.With PCTFE seal. Design temperature range-80℃~80°℃.

Relief Valve
Weld-prepared inlet and outlet. 1.6Mpa pressure setting with PCTFE seal . Design temperature range – 196℃~80℃.

DN25 Five way Ball Valve
“T” type five-way ball valve is mainly used an the safety valve installation body of the combined safety system valve. With PCTFE seal. Design temperature range-196℃-80℃.

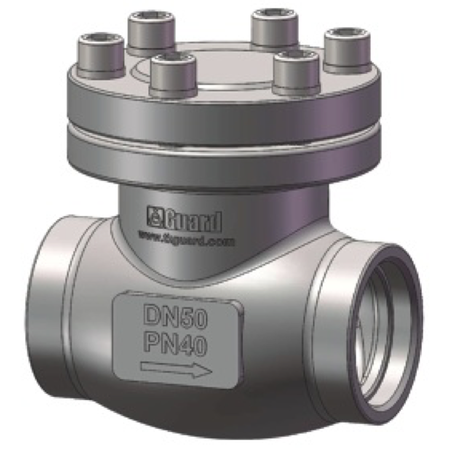

Cryogenic Check Valve
Suitable for LNG, prevent medium from flowing back. With PCTFE seal. Design temperature range -196℃ ~80℃.

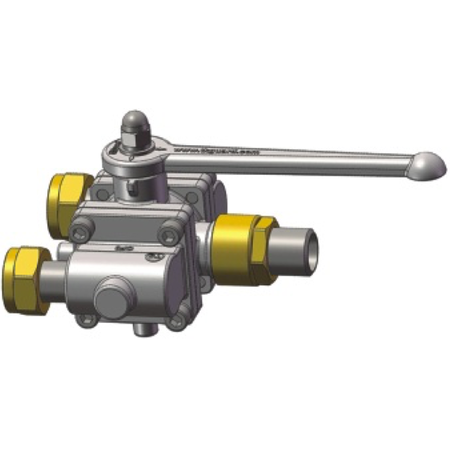

T75 Three Way Ball Valve
Cryogenic Three Way Ball Valve””type three-way ball valve is mainly used as the safety valve installation body of the combined safety system valve.

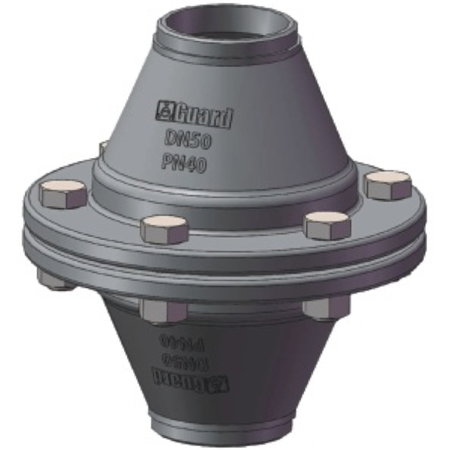

Flame arrester
The flame arrester is made up of many small pipes and gaps so that the gas can penetrate.
These pipes and gaps are extremely small so they can block and extinguish the flame.
The operation temperature is below 300 degrees Celsius.
