GUARD™

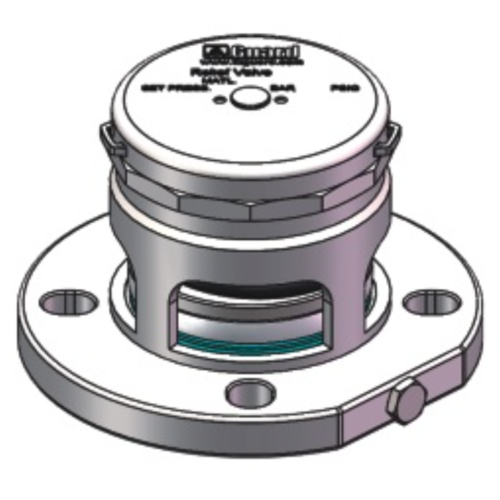

PFA Lined Flanged Safety Relief Valve
€0,00
€0,00 Ex. BTW/VAT
PFA Lined Safety Relief Valve are suitable for pressure ranges from 1.5 to 106.1 PSI (0.1 to 7.31 Bar) for pressure and from 0 to 3 PSI (0 to 0.21 Bar) for vacuum. The whole body is made of stainless steel, and the contact parts of the medium is lined wit
In stock
Article code: AFXXXXXXXXXX
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
PFA Lined Safety Relief Valve are suitable for pressure ranges from 1.5 to 106.1 PSI (0.1 to 7.31 Bar) for pressure and from 0 to 3 PSI (0 to 0.21 Bar) for vacuum. The whole body is made of stainless steel, and the contact parts of the medium is lined with PFA, and the contact parts are made of PTFE. This kind of relief valve has strong anti-corrosion ability.

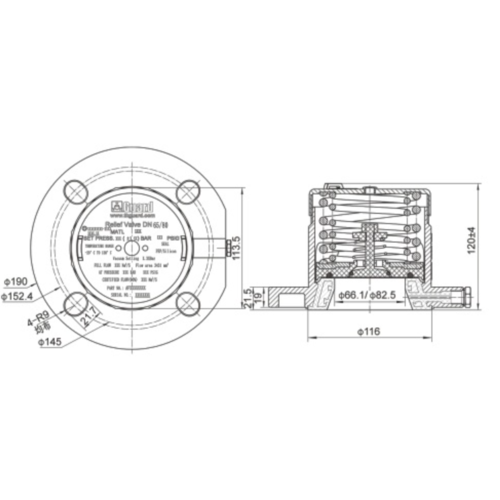

Connection Flange 4 18
Nominal Diameter: DN80/DN65
Nominal Pressure: PN10
Design Temperature: -20Cº ~ +130Cº
Contact Parts PFA/PTFE
Seal PFA/PTFE
