GUARD™
DN300 Crane Pipe Inspection
€0,00
€0,00 Ex. BTW/VAT

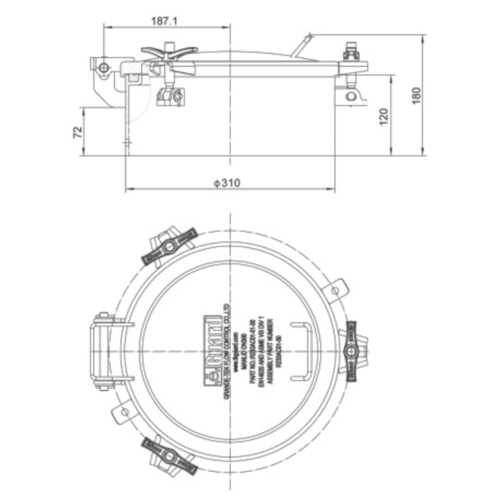

Nominal Diameter: 300mm
TestPressure: 2Bar(29PSI)
Points: 3
Design Temperature: -40ºC ~ +200ºC
Cover Weight: 10.3kg
Neckring Weight; 17kg
TestPressure: 2Bar(29PSI)
Points: 3
Design Temperature: -40ºC ~ +200ºC
Cover Weight: 10.3kg
Neckring Weight; 17kg
In stock
Article code: R233AC01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

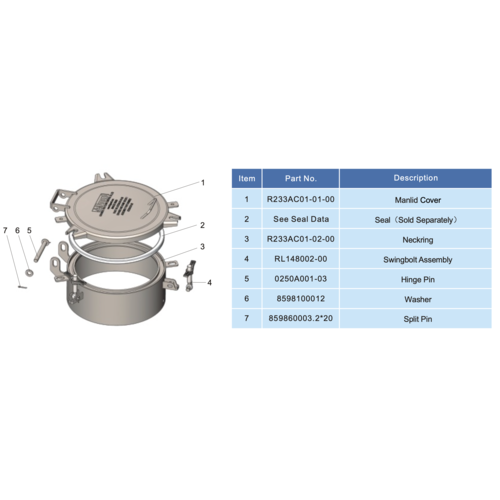

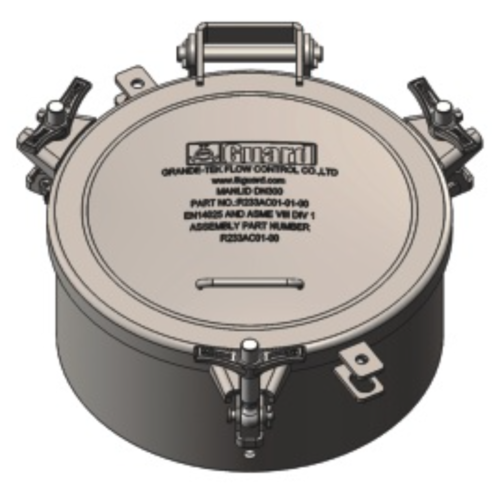

DN300 Crane Pipe Inspection.Crane pipe is a special equipment for loading and unloading liquid media such as oil. On the basis of the inspection , according to the size of the crane pipe, a lining ring structure is added to realize the function of loading and unloading materials after docking with the crane pipe. Inspection cover special structure to fit neckring sealing surface. The sealing cover is mounted on the neckring and is provided separately. Optional - The inspection can be customized individually according to the size of the crane tube.
