GUARD™ DN500 Vehicle Flange Manlid Assembly
GUARD™ DN500 Vehicle Flange Manlid Assembly
GUARD™ DN500 Vehicle Flange Manlid Assembly
GUARD™

DN500 Vehicle Flange Manlid Assembly

€0,00
€0,00 Ex. BTW/VAT

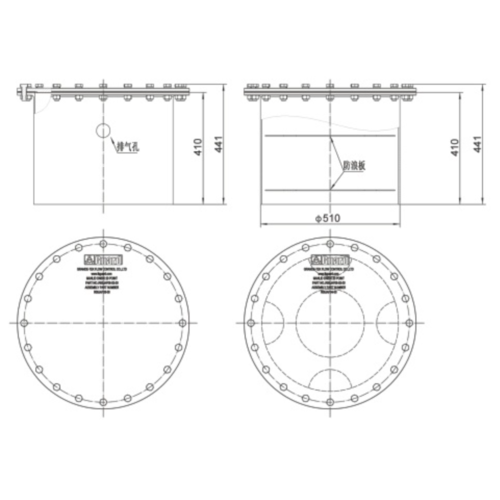

Nominal Diameter 500mm
Points 20
Design Temperature - 40ºC ~ + 200ºC
Cover Weight 35.5kg
Neckring Weight 34kg
In stock
Article code: R05JAF03-00
Product description

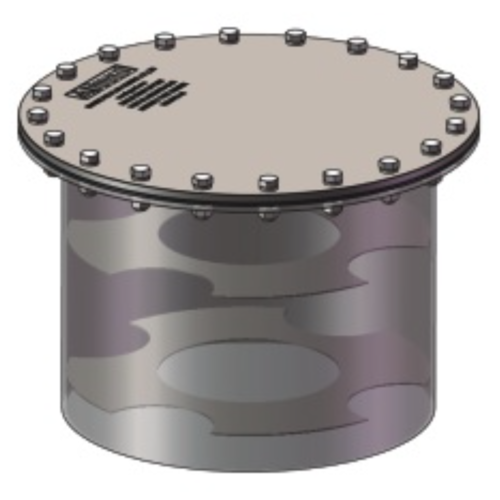

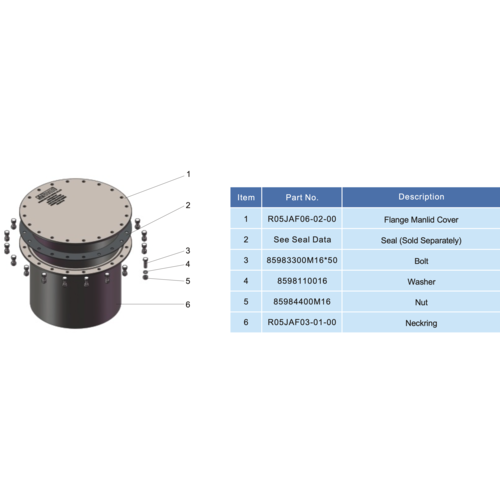

DN500 Vehicle Flange Manlid Assembly , flange cover and neckring are connected by 20 M16 bolts. The neckring can be welded inside the wave plate, can effectively prevent the impact of the media due to inertia on the cover body, suitable for atmospheric tank car. Gaskets and fasteners are provided separately.
