GUARD™

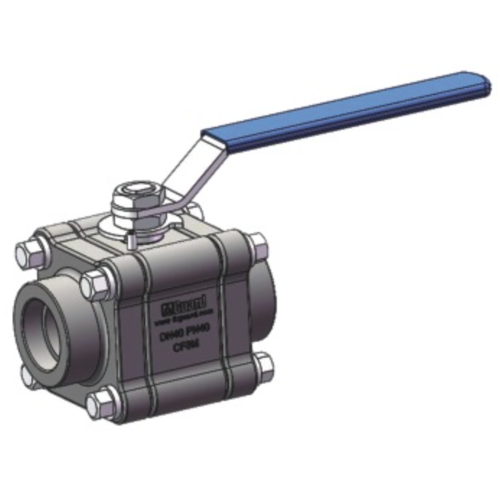

DN40 Carbon Dioxide Ball Valve
€0,00
€0,00 Ex. BTW/VAT
Nominal Diameter: 40mm
Nominal Pressure: 1440PSI
Design Temperature: 1000PSIG AT 120º F/
100PSIG AT 375ºF
Contact Parts: CF8M/316
Seal: PTFE, graphite
Nominal Pressure: 1440PSI
Design Temperature: 1000PSIG AT 120º F/
100PSIG AT 375ºF
Contact Parts: CF8M/316
Seal: PTFE, graphite
In stock
Article code: QTCD4001-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
DN40 Carbon Dioxide Ball Valve, the connection between the valve and the outside is plug-in welding, the main seal is made of enhanced PTFE material with increasing temperature and resistance, the winding gasket is used between the valve body and main seal, and the bottom bracket is multi-stage sealed.
