GUARD™

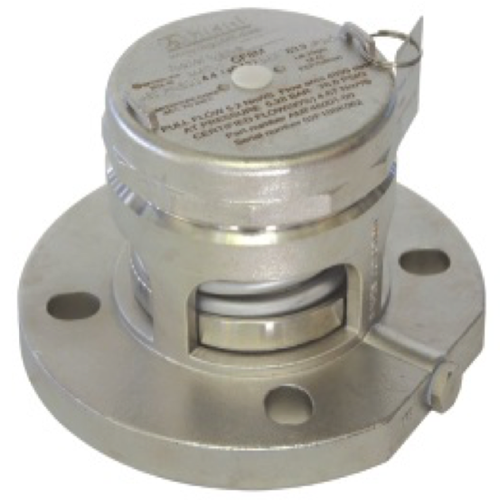

Safety Relief Valve 3" flanged
€500,49
€413,63 Ex. BTW/VAT
Part No. APF48001-00
Nominal Diameter DN80

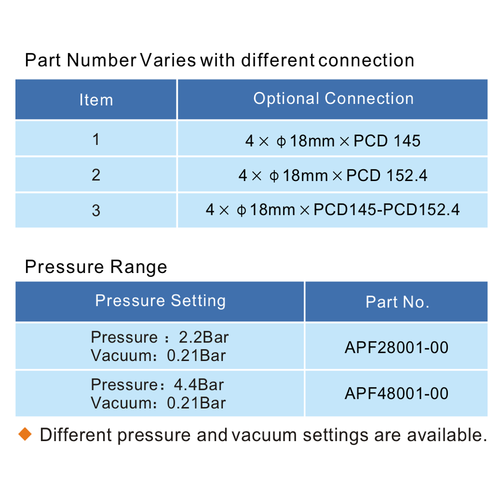

Connection Tank Flange 4x18 PCD145 Pressure Setting 4.4Bar/63.8PSIG
Pressure Setting -0.21Bar/6.2 HG
Contact Parts in SS 316L Seal FEP/Silicon Encapsulated O-Ring Design Temperature -55 200 Weight 5.26kg
Nominal Diameter DN80
Connection Tank Flange 4x18 PCD145 Pressure Setting 4.4Bar/63.8PSIG
Pressure Setting -0.21Bar/6.2 HG
Contact Parts in SS 316L Seal FEP/Silicon Encapsulated O-Ring Design Temperature -55 200 Weight 5.26kg
In stock
Article code: APF48001-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Part No. APF48001-00 Nominal Diameter DN80 Connection Tank Flange 4x18 PCD145 Pressure Setting 4.4Bar/63.8PSIG
Pressure Setting -0.21Bar/6.2 HG
Contact Parts in SS 316L Seal FEP/Silicon Encapsulated O-Ring Design Temperature -55 200 Weight 5.26kg
Pressure 4.4bar, Vacuum 0.21bar, SS 316, FEP/Silicon Encapsulated O-Ring
