GUARD™

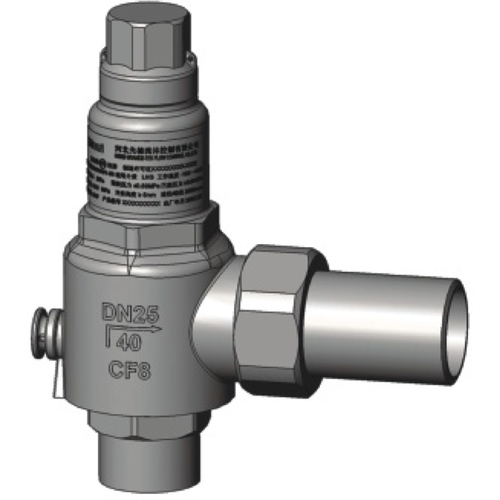

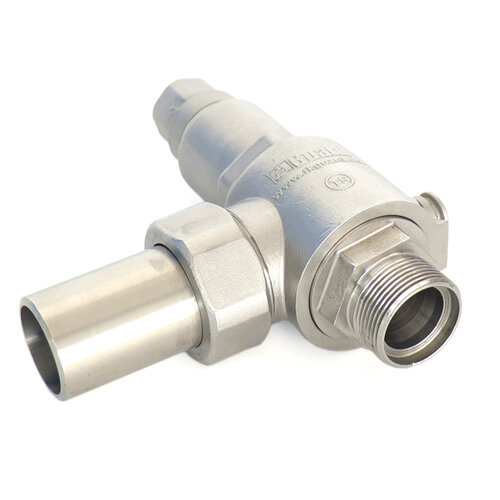

Relief Valve DN 25 Pressure setting 0,75 Mpa
€801,37
€662,29 Ex. BTW/VAT
Relief Valve Weld-prepared inlet and outlet.
0.75Mpa pressure setting with PCTFE seal.
Design temperature range -196 ~ 80 C
PCTFE seal, SS 304, Nominal Diam DN 25, design temp -196 - 80 degrees celsius
0.75Mpa pressure setting with PCTFE seal.
Design temperature range -196 ~ 80 C
PCTFE seal, SS 304, Nominal Diam DN 25, design temp -196 - 80 degrees celsius
Out of Stock
Article code: DA254701-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Relief Valve Weld-prepared inlet and outlet.
0.75Mpa pressure setting with PCTFE seal.
Design temperature range -196 ~ 80 C
Part No. DA254701-00
Norminal Diameter DN25
Design Pressure PN40
Material SS 304
Seal PCTFE PTFE
Design Temperature -196 ~ 80 C
PCTFE seal, SS 304, Nominal Diam DN 25, design temp -196 - 80 degrees celsius
