GUARD™
170 mm Inspection Assembly height 75 mm
€432,96
€357,82 Ex. BTW/VAT

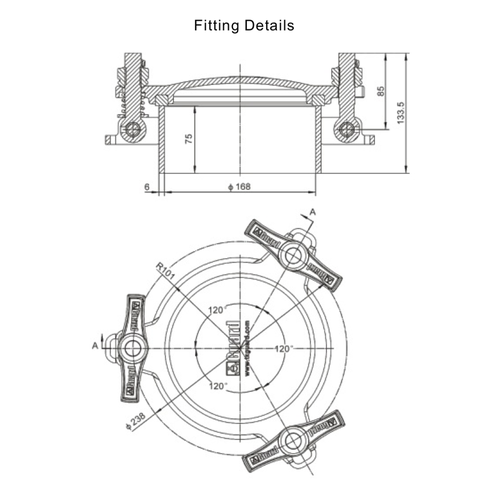

170mm Inspection 3 points, 6mm thickness, neck ring depths 75mm. Stainless steel swing bolts with stainless steel hand nuts or brass hand nuts. Manlid seal sold separately. Option: different neck ring depths and swing bolt
combinations are available.
combinations are available.
Out of Stock
Article code: R4139501-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

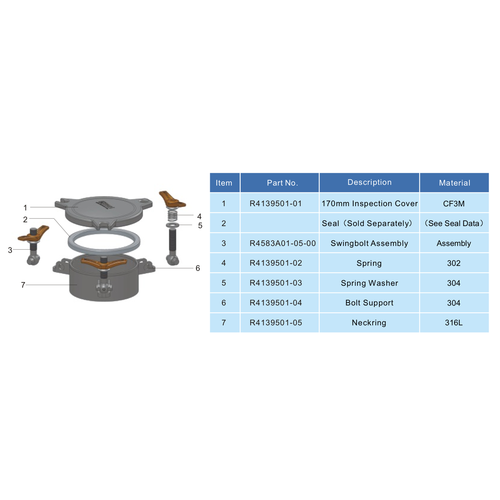

170mm Inspection 3 points, 6mm thickness, neck ring depths 75mm.
Stainless steel swing bolts with stainless steel hand nuts or brass hand nuts.
Manlid seal sold separately.
Option: Different neck ring depths and swing bolt
combinations are available.
3 points, 6 mm thick
Part No. R4139501-00
Nominal Diameter 170mm
Design Pressure 4 Bar (58PSI)
Test Pressure 6 Bar (87PSI)
Points 3
Material SS 316L
Design Temperature -20 150 C
