GUARD™

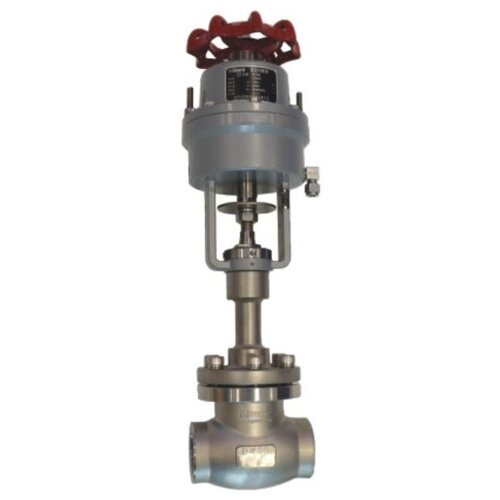

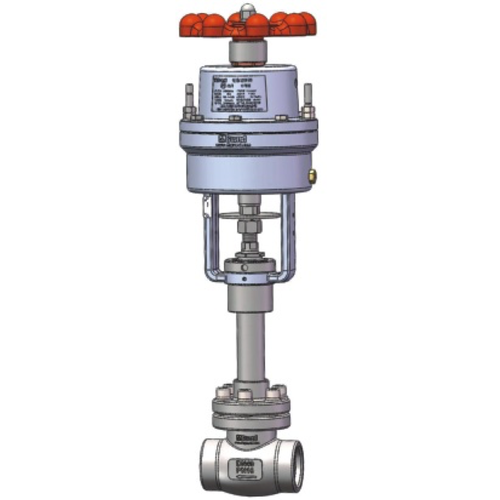

T75 Cut-off valve DN 40 Cylinder Pressure 4-7 Bar
€1.115,96
€922,28 Ex. BTW/VAT
Cryogenic Emergency cut-off Valve An
emergency shut-off device for cryogenic equipment
such as cryogenic storage tanks or tank trucks.
When the outside temperature is higher than 70 degrees +/- 5 , the emergency shut-off valve is automatically close
emergency shut-off device for cryogenic equipment
such as cryogenic storage tanks or tank trucks.
When the outside temperature is higher than 70 degrees +/- 5 , the emergency shut-off valve is automatically close
Out of Stock
Article code: DJQA4001-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Cryogenic Emergency cut-off Valve An
emergency shut-off device for cryogenic equipment
such as cryogenic storage tanks or tank trucks.
When the outside temperature is higher than 70 degrees +/-5 ,
the emergency shut-off valve is automatically closed,
the medium is cut off, and the tank or tank truck is
protected.Suitable for LNG,LC H . Welding
connection. The flow direction of the medium flows
from the high side to the low side of the valve body.
Part No. DJQA4001-00
Nominal Diameter DN40
Design Pressure PN16
Cylinder Pressure 4-7 bar
Main Material SS 304
Cylinder Assembly Material Cast aluminum
Seal PCTFE PTFE
Design Temperature -196 ~ 70/ 5 C
PCTFE seal, SS 304, Cylinder alu, Nominal Diam DN 40, design temp -196 - 70 degrees celsius
