GUARD™

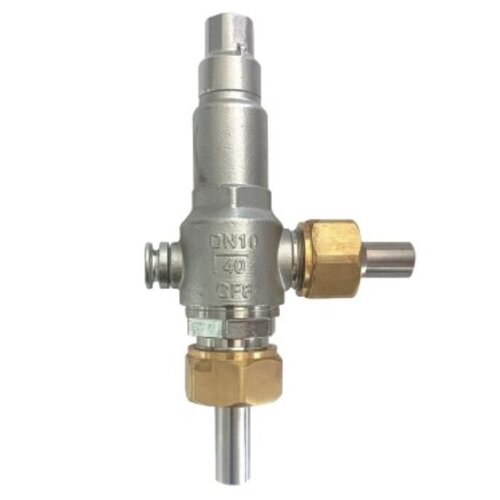

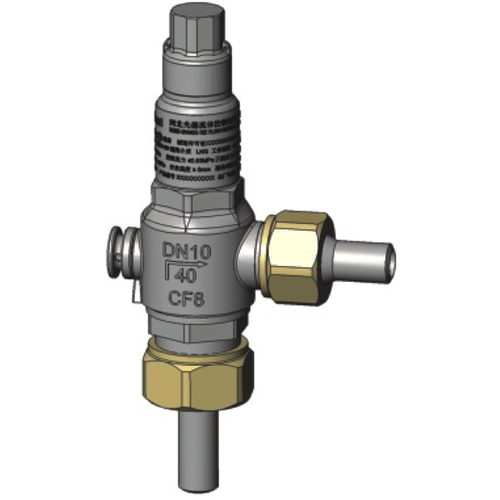

T75 Relief Valve DN 10 Pressure setting 1,6 Mpa
€391,13
€323,25 Ex. BTW/VAT
Relief Valve Weld-prepared inlet and outlet.
1.6Mpa pressure setting with PCTFE seal. Design temperature range -196 ~ 80 C
PCTFE seal, SS 304, Nominal Diam DN 10, design temp -196 - 80 degrees celsius
1.6Mpa pressure setting with PCTFE seal. Design temperature range -196 ~ 80 C
PCTFE seal, SS 304, Nominal Diam DN 10, design temp -196 - 80 degrees celsius
Out of Stock
Article code: DA104A01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Relief Valve Weld-prepared inlet and outlet. 1.6Mpa pressure setting with PCTFE seal.
Design temperature range -196 ~80 C
Part No. DA104A01-00
Norminal Diameter DN10
Design Pressure PN40
Material SS 304
Seal PCTFE, PTFE
Design Temperature -196 ~ 80 C
PCTFE seal, SS 304, Nominal Diam DN 10, design temp -196 - 80 degrees celsius
