T50 GAS TANK

Gas safety valves & emergency shut-off valves for T50 tank containers | Guard Europe BV

A reliable gas safety valve is essential for the safety of ISO and T50 tank containers. Guard Europe BV supplies high-quality gas valves and emergency shut-off valves, specially developed for the safe regulation and release of pressure in the gas phase.

Our products comply with international standards and are designed for maximum safety, ease of use, and durability—even under extreme conditions.

Guard T50 Gas Relief Valve – Three Basic Versions

The Guard T50 gas relief valve is available in three versions, tailored to the specific requirements of your transport application:

1. Overpressure valve – the simplest version, exclusively for overpressure protection.

2. Overpressure valve with rupture disc holder – suitable for products that require a rupture disc in series.

3. Overpressure valve with rupture disc provision – equipped with a mounting flange for the subsequent installation of a rupture disc holder.


The valve is located at the top of the tank, in the gas phase, and ensures that in emergency situations, such as fire, the tank can safely release pressure.

Unique Advantages of the Guard Gas Safety Valve

The design of the Guard gas safety valve offers a number of distinctive advantages:

• Main seal replaceable under pressure – maintenance without disassembly.

• No special tools required – easy maintenance.

• Manual operation possible – even when the opening is frozen due to extreme weather conditions.

These features make the valves ideal for international transport where reliability and safety are crucial.

Emergency shut-off valves for gas and liquid

In addition to gas safety valves, Guard also supplies a range of internal emergency shut-off valves for both the gas phase and the liquid phase of T50 tank containers.

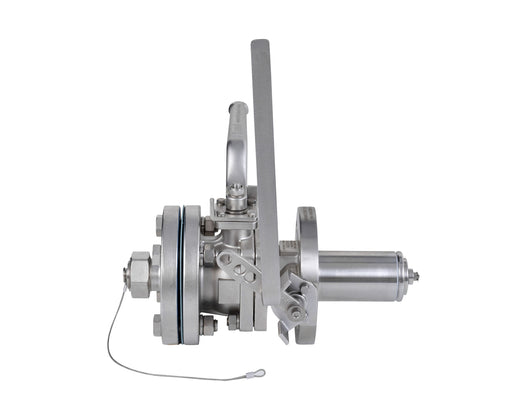

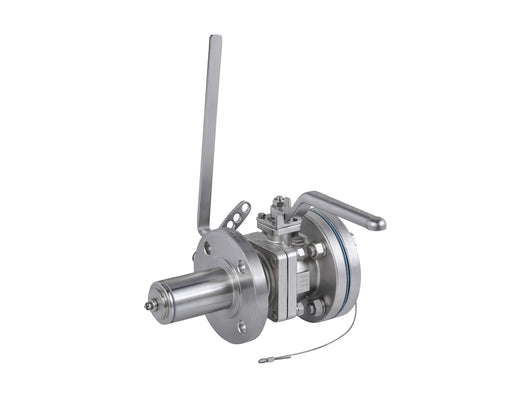

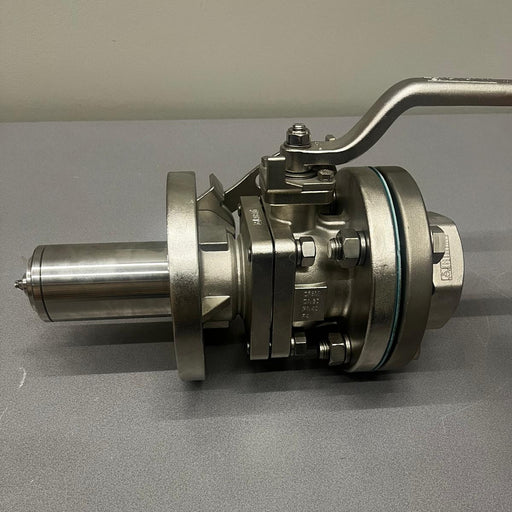

2" DN50 T50 Gas valve

• Pressure setting: 500 PSI (34.5 bar)

• Test pressure: 1015 PSI (70 bar)

• Inlet flange: 4 × Ø18 mm holes on PCD 125 mm

• Equipped with 2“ ball valve Outlet: 1.75” ACME including cap

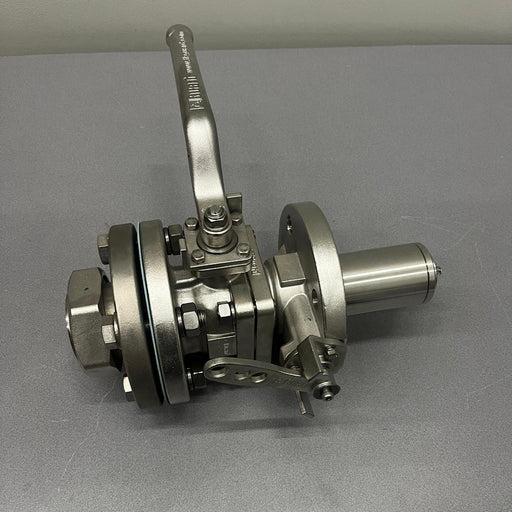

2" DN50 T50 Liquid Valve

• Pressure setting: 500 PSI (34.5 bar)

• Test pressure: 1015 PSI (70 bar)

• Inlet flange: 4 × Ø18 mm holes on PCD 125 mm

• Equipped with 2" ball valve

• Outlet: 3.25" ACME including sealing cap

Why choose Guard Europe BV?

✔ Extensive range of gas valves and emergency shut-off valves
✔ Immediately available in standard versions
✔ ADR and international transport compliant
✔ Customization possible for specific applications
✔ Support from a technical team with years of experience

Are you looking for a reliable gas safety valve or emergency shut-off valve for your T50 tank container?
Contact Guard Europe BV for advice or request a quote directly.
