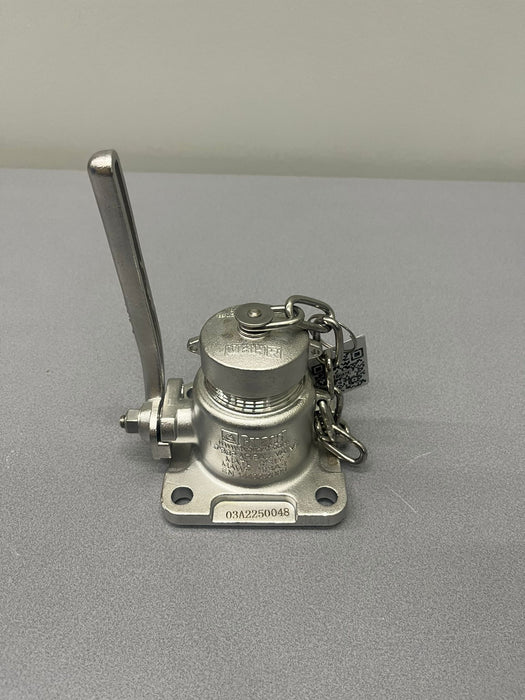

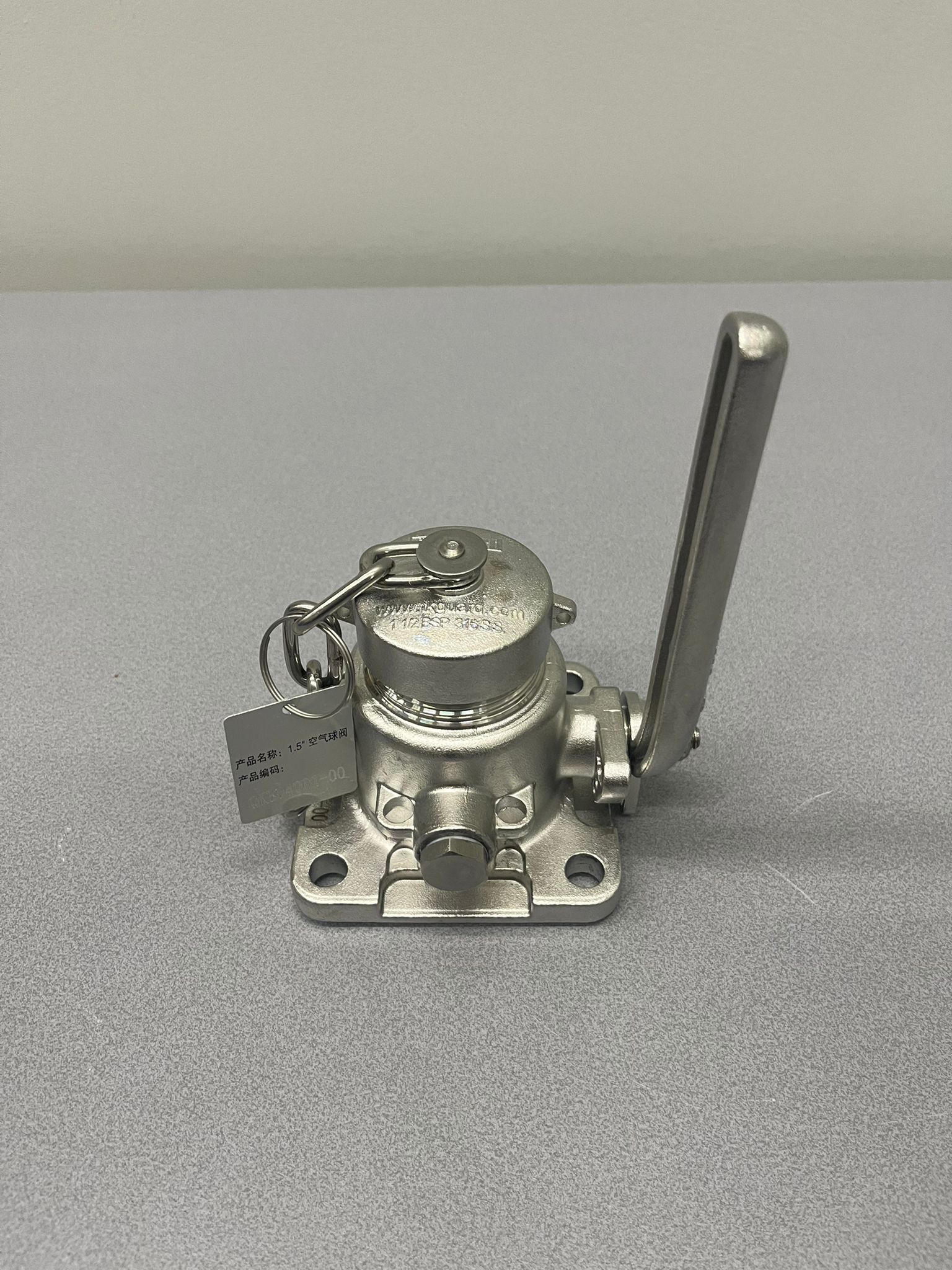

1.5" Air Inlet Ball Valve, 316L Stainless Steel
€121,31

1.5" Air Inlet Ball Valve, 316L Stainless Steel

Original price €0,00 - Original price €0,00
Original price €0,00
€121,31
€121,31 - €121,31
Current price €121,31
Incl. VAT/BTW

Artikelcode: QKB04001-00

Description

1.5" BSP Air Inlet Ball Valve 1.5" BSP connection.
With pressure gauge and protection connection and
leading seal. The pressure gauge is mounted on the left
side of the handle.
Option Protection, gauze filter and outlet connector.

Specifications
  • Connection: Container flange, drilling 4x11xPCD103.5 Outlet 1.5"BSP
  • Nominal Diameter: 32mm
  • Maximum Working Pressure: 10Bar
  • Contact Part: 316
  • Seal: PTFE, Viton
  • Design Temperature: - 40 degrees ~ 190 degrees Celsius
Download data sheet
Advantages and disadvantages
Ordering and delivery

All prices are Ex Works (ex warehouse).

Exceptions may apply where different terms are agreed upon per order.

We ship via PostNL, GLS, or FedEx.

Service costs and availability depend on your order’s weight and delivery address. Returns are accepted only after prior consultation and approval.

For accepted returns, return shipping costs are borne by the purchaser, unless the incorrect delivery is the result of Guard Europe BV’s actions.
