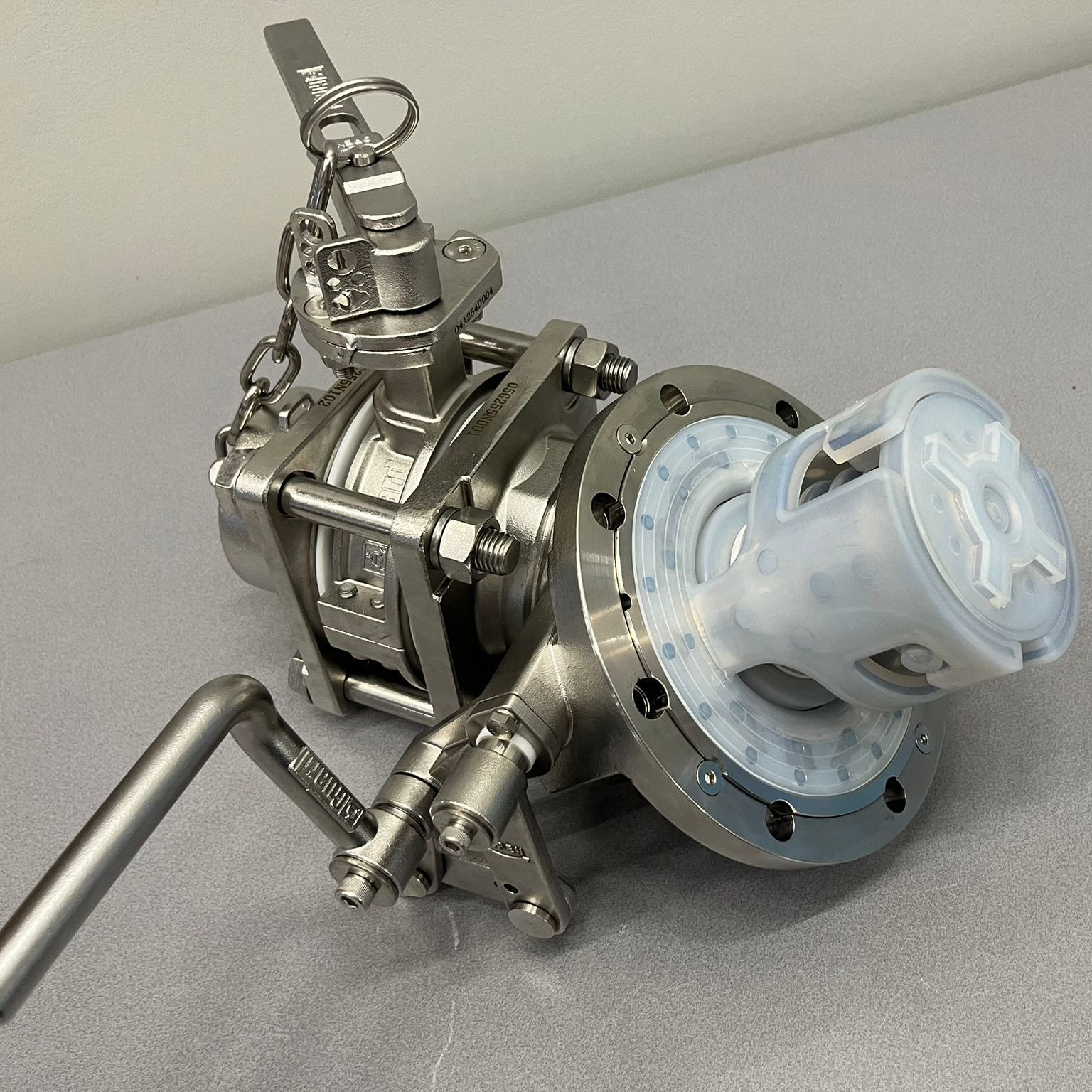

3” 45° Bottom Discharge assembly, PFA lined
€4.975,83
3” 45° Bottom Discharge assembly, PFA lined

3” 45° Bottom Discharge assembly, PFA lined

by Guard Europe BV
Upon request
€4.975,83 - €4.975,83
€4.112,26
€4.975,83 - €4.975,83
€4.112,26
Excl. VAT/BTW

Artikelcode: HDJ48079-00

Description

WAMP: 4 bar, Temperatuurbereik: -40 tot 190 °C

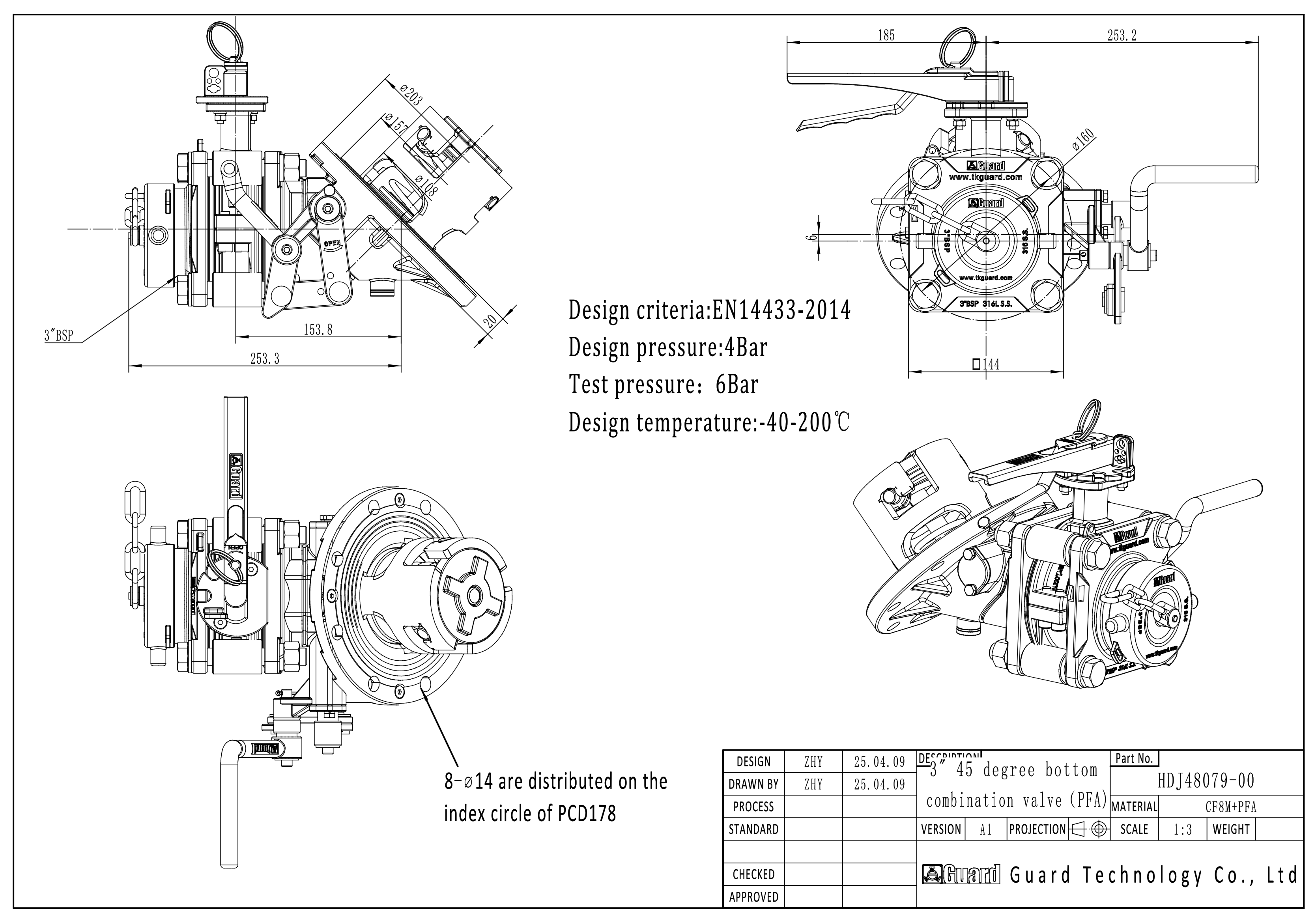

Specifications
  • DN80 / 3”
  • Connection: 3” BSP
  • EN14432
  • Lining standard: PFA (fluoropolymer lining)
  • Maximum allowable working pressure (WAMP): 4 bar
  • Design pressure: 4 bar
  • Test pressure: 6 bar
  • Operating temperature: –40 °C to +190 °C
  • Body material: CF8M (AISI 316 stainless steel)
  • Bolt pattern: 8 × Ø14 mm
  • Pitch circle diameter (PCD): 178 mm
Download data sheet
Advantages and disadvantages
Ordering and delivery

All prices are Ex Works (ex warehouse).

Exceptions may apply where different terms are agreed upon per order.

We ship via PostNL, GLS, or FedEx.

Service costs and availability depend on your order’s weight and delivery address. Returns are accepted only after prior consultation and approval.

For accepted returns, return shipping costs are borne by the purchaser, unless the incorrect delivery is the result of Guard Europe BV’s actions.
