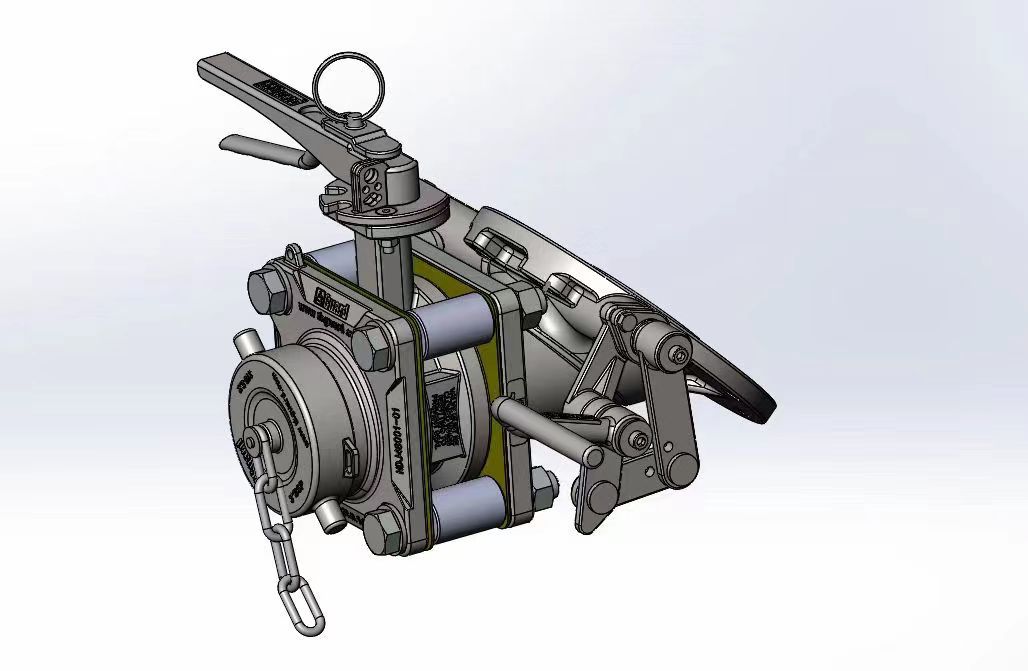

3" 45° Quickflow Foot Valve Bottom Outlet Valve Complete

Complete 3" Quickflow bottom outlet valve assembly with foot valve, butterfly valve and BSP outlet flange, including gaskets and bolts.

Part No.: HDJ48006-00

Connection:
Flange drilled 8x ф14 x PCD178

Outlet: 3" Male BSP

Nominal Diameter: 80mm

Nominal Pressure: 6Bar

Contact Parts: 316

Fitted with FEP/Silicon Encapsulated O-Ring

Design Temperature: -40℃~200℃℃

Use this text to share information about your product.
