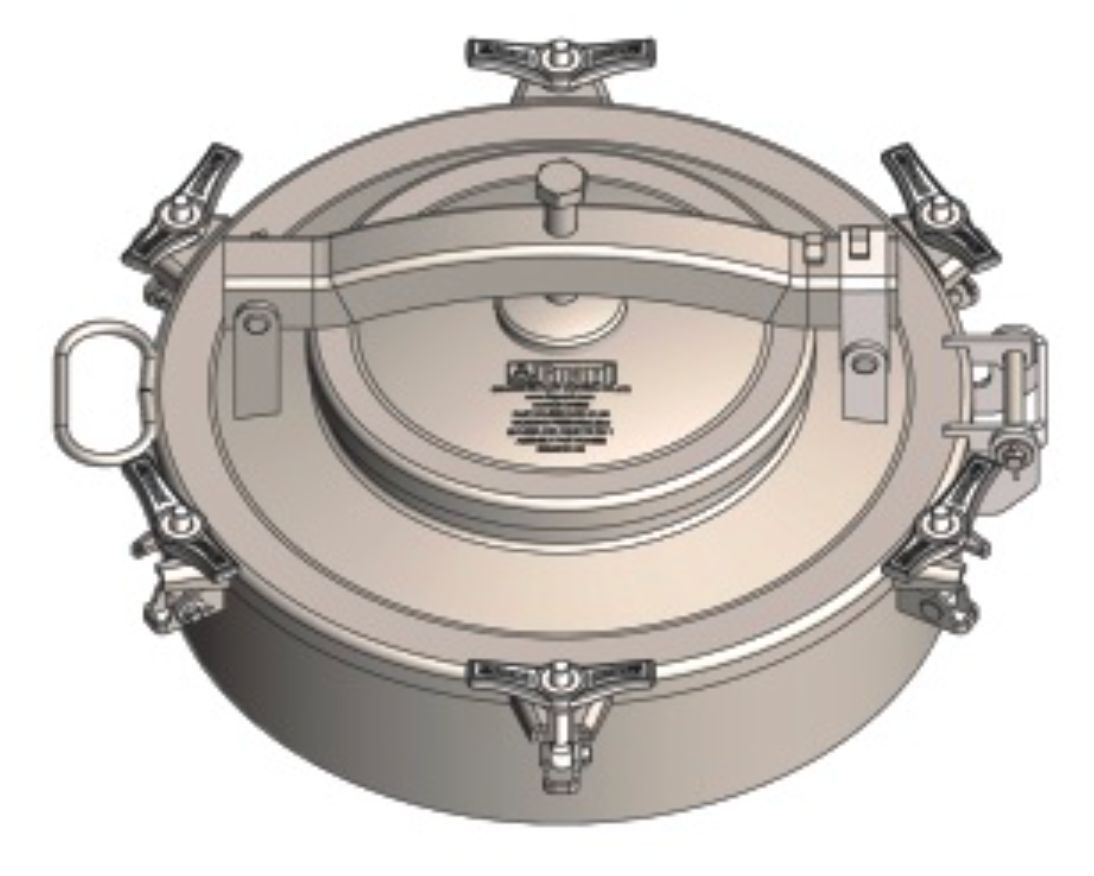

DN500 Atmospheric Vehicle Manlid Assembly
€0,00

DN500 Atmospheric Vehicle Manlid Assembly

Original price €0,00 - Original price €0,00
Original price €0,00
€0,00
€0,00 - €0,00
Current price €0,00
Incl. VAT/BTW

Artikelcode: R0563C01-00

Description

Atmospheric Vehicle Manlid Assembly.DN500 cover quick-open bolt assembly locking, cover on the DN300 inspection cover cross beam gland structure, atmospheric pressure. Suitable for storage and transport medium under atmospheric pressure environment. The manlid cover opens and closes easily. Tighten
the pressure bolt to seal the manlid cover.

Specifications
  • Nominal Diameter: 500mm
  • Test Pressure: 0.2Bar(2.9PSI)
  • Design Temperature: -20ºC ~ +200ºC
  • Lid Weight: 15.5kg
  • Neckring Weight: 7.8kg
Download data sheet
Advantages and disadvantages
Ordering and delivery

All prices are Ex Works (ex warehouse).

Exceptions may apply where different terms are agreed upon per order.

We ship via PostNL, GLS, or FedEx.

Service costs and availability depend on your order’s weight and delivery address. Returns are accepted only after prior consultation and approval.

For accepted returns, return shipping costs are borne by the purchaser, unless the incorrect delivery is the result of Guard Europe BV’s actions.
